PIPEMAN’S HAND HELD ECO DIGITAL MULTIMETER | IS-9000-ECO

SKU: HIS9000ECO

Eco Digital Multimeter
Brand: Pipeman’s
Material: ABS
Multifunctional
Battery type: 2 x 1.5V AAA Battery
Portable pocket size design
Convenient to read the measuring results
Easy to read even in dark places
Dimension: 12 cm x 6.1 cm x 2.8 cm
Stable performance, high precision, TRMS, large LCD screen
One-touch function measurement with automatic identification gear

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price:
~~SRD 624.80~~
Online price:
SRD 511.20
(incl BTW SRD 562.32)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Payment Methods:

Description

The Full Automatic Portable Digital Multimeter is used to measure AC/DC voltage, AC/DC current, resistance, NCV, diode, continuity. Auto power off, low power consumption. It is designed to safely and accurately troubleshoot a variety of automotive, laboratory, factory and household electrical problems.

DM0001 Full Set

One Set Included

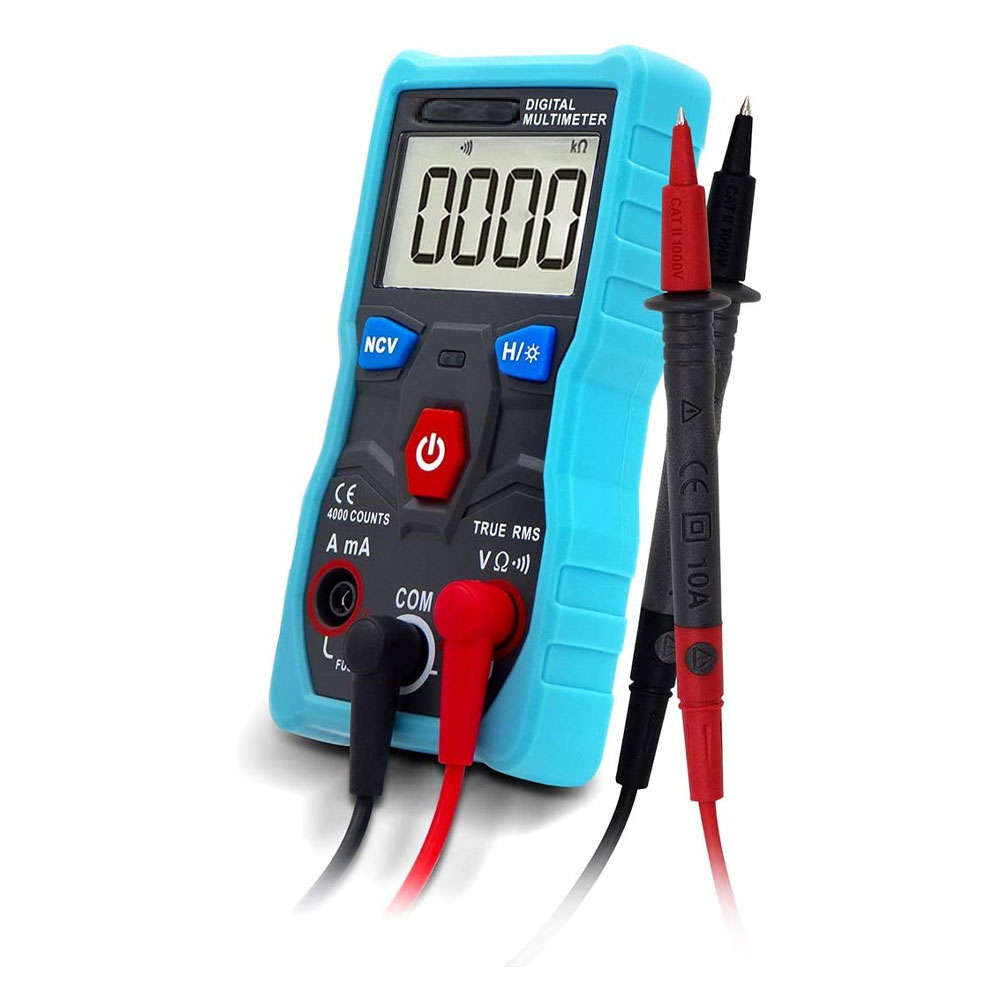

Digital Multimeter x1
Test leads x1
English user Manual x1

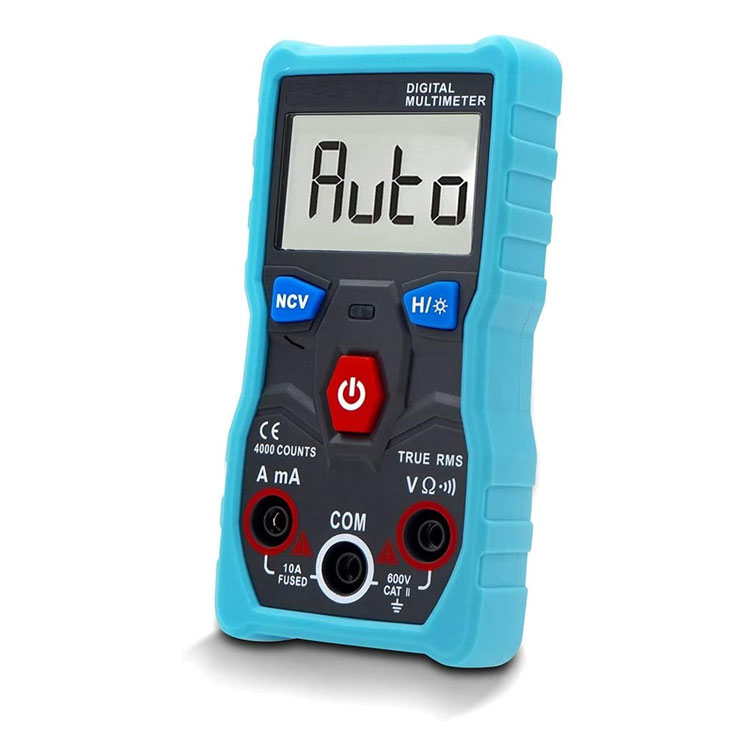

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display.

Features It’s a perfect tool for the laboratory, factory and home

Multifunctional, can measure AC/DC voltage, AC/DC current, resistance, NCV, diode, continuity.
One-touch function measurement with automatic identification gear, easy to use.
Portable pocket size design, easy to carry for indoor and outdoor.
Stable performance, high precision,TRMS, large LCD screen.
With data hold function, convenient to read the measuring results.
Large LED display supports backlight, easy to read even in dark places.

Mearsurement must be made with correct input terminals and functions and within the allowable measuring range.
Do not use the product around explosive gas, vapor, or in damp or wet environents.
Low level of a battery will result in incorrect reading. Change the batteries when battery level is low. Do not make measurements when the battery door is not propely placed.

Measurements


Test for NCV/ Continuity NCV: Keep pushing the NCV button to enter the NCV mode. Hold the product and move it around, the built-in beeper will beep when the inner sensor detects AC voltage nearby. The stronger the voltage is, the quicker the beeper beeps while the central LED light will twinkle. Continuity: Put the red lead into the VΩ terminal, put the black lead to the COM terminal The continuity measure will be auto matched. Touch the probes to the desired test points of the circuit. The built -in beeper will beep when the resistance is lower than 50Ω, which indicates a short circuit while the central LED light will light .	Test for Current Put the red lead to A mA terminal and put the black lead to COM terminal. The current measure will be auto matched when you put the leads in. Touch the probes to the correct test points of the circuit to measure the current. Read the measured current on the display When you input the current over 2 AMP, the testing time should be less than 3 seconds. When the probes are in the current terminal but you have no operations, this product will alarm each 4 seconds to remind that you are in the current mode	Measure DC/AC Voltage (＞0.8mV) Only when the voltage is higher than 0.8mV, this product will show the display. Put the red lead into the VΩ terminal, put the black lead to the COM terminal. The DC or AC voltage will be auto matched. Touch the probes to the correct test points of the circuit to measure the voltage. Read the measured voltage on the display.	Measure Resistance Put the red lead into the VΩ terminal, put the black lead to the COM terminal. The resistance measure will be auto matched. Touch the probes to the desired test points of the circuit to measure the resistance. Read the measured resistance on the display.
