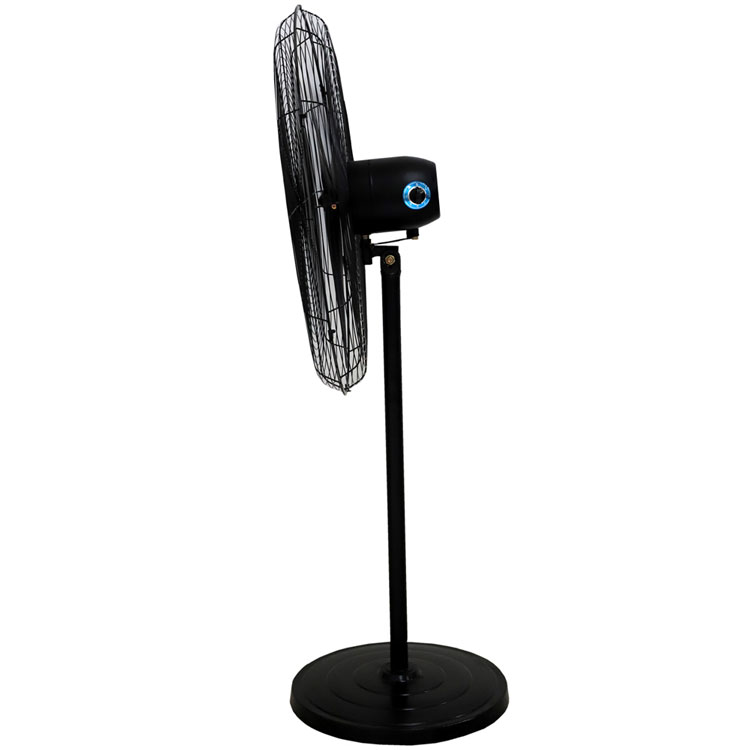

Industrial stand fan (30 inch)

• Industrial fan total length: 145cm
• With 3 plastic fan blade in black color (plastic fan blade thickness: 1.8–8.6mm, weight: 275g, diameter 680mm) as per ev sample)

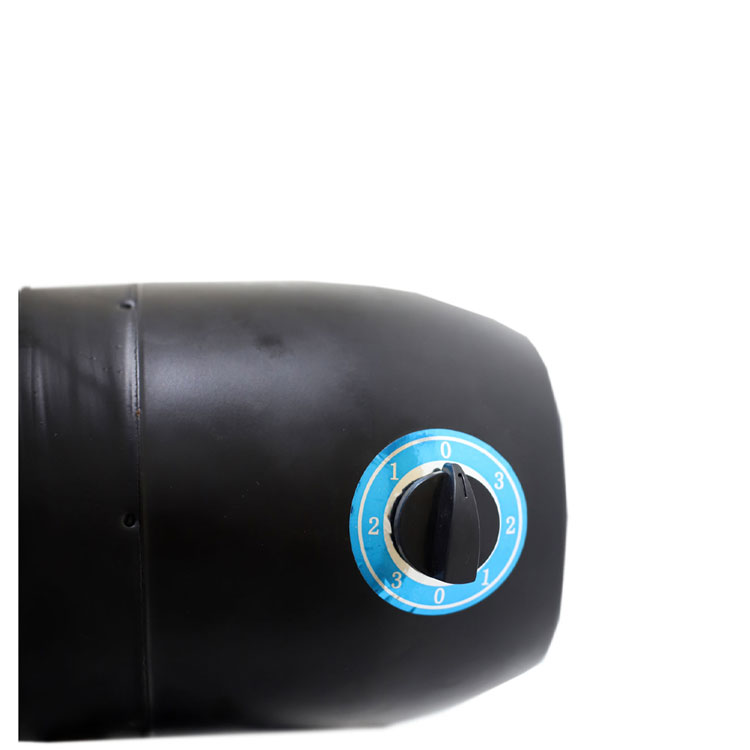

• With 3 speeds, switch (0, 1, 2, 3) – set 1 is high level
• Swing 60° to 70° (tilt angle adjustable oscillation), about 10 degrees up and down
• Can pass 10° tilt test
• Motor with fuse protection
• Switch
• Color in black as per ev sample

Front and rear grill

• With black coating
• Front net fan wire diameter 1.6mm
• With 25 round iron wires (diameter of 2.7mm) together 12 iron wires composition, thickness: 78.5cm, the front net has 5 pcs clips (free net) around the grill, 1 pc fixed clips, the rear net has 22 round iron line
• Front grill height: 58mm
• Real grill height: 48mm
• Support interval: 14mm
• Front and rear total weight: 1.9kgs

Engine: (cca)

• Shaft exposed motor: 53mm
• Diameter: 16mm,
• Rotating connection piece: 1.1mm,
• Back shell engine: 0.5mm
• For ac110v/60hz – 120x16mm as per ev sample

Support tube with black coating

• Diameter: 37.3mm
• Support tube length: 89cm

Round type rubber base:

• Diameter: 46.6cm, about 5.61 kgs material:
• Fan blade: plastic (pp)
• Front and rear grill: metal with black coating
• Engine cover : metal with black coating
• Support tube : metal with black coating
• Base round : plastic + mixed soil
• Engine is cca material

Power engine

• For ac110v/60hz – 160 watts (+/-10%)

Motor rotation speed

• For ac110v/60hz – around 1400 rpm +/-50 rpm
• High wind speed: not less than 6.9m/s (measured at 1 m distance).
